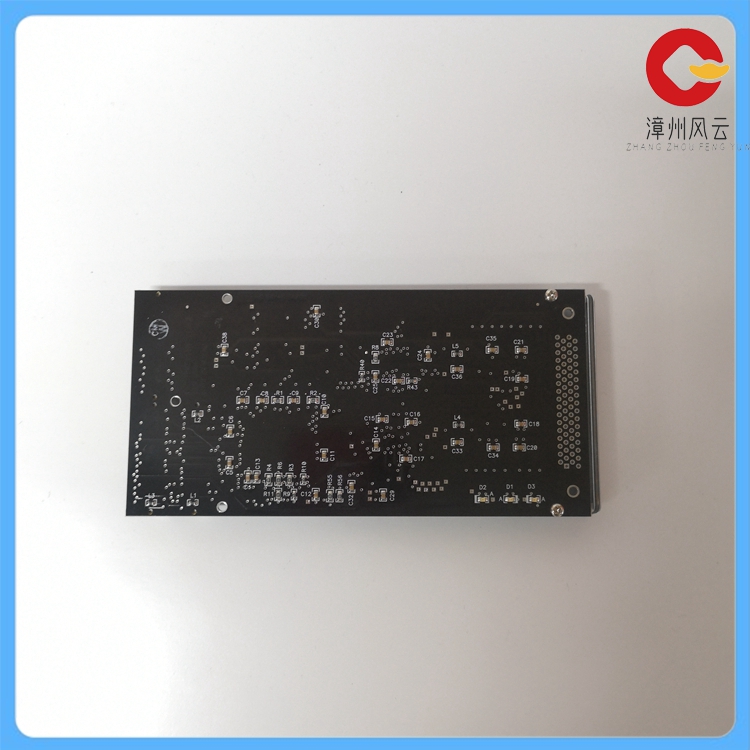

AM801F 耦合器模块

AM801F 是一款耦合器模块。

以下是关于AM801F的相关参数和特性：

电压：24V。

重量：2KG。

应用领域：主要用于工业自动化控制系统，特别是与可控硅触发电路相关的应用。

可控硅触发电路特性：

具有抗噪声干扰的能力，并且不受线路阻抗、短路容量或开关的快速通断的影响。

提供自动同步的触发脉冲

使用闭环触发控制方式，根据输出电流和电压反馈进行平滑的软起动，以防止由于起动时相间的不平衡而引起电机过热。

使用脉冲变压器隔离特殊设计的三相120V低压控制电源变压器。

使用光导纤维隔离中压电源和全部低压系统之间，并通过CT隔离的信号再通过光导纤维隔离，以达到最大限度的隔离。

The AM801F is a coupler module.

Here are the parameters and features of the AM801F:

Voltage: 24V.

Weight: 2KG.

Application: Mainly used in industrial automation control systems, especially in applications related to thyristor trigger circuits.

Thyristor trigger circuit characteristics:

It has the ability to resist noise interference and is not affected by line impedance, short circuit capacity or the fast on-off of the switch.

Provides automatic synchronization trigger pulse

The closed-loop trigger control mode is used to smooth the soft start according to the output current and voltage feedback to prevent

the motor from overheating due to the imbalance between phases when starting.

Use a pulse transformer to isolate a specially designed three-phase 120V low voltage control power supply transformer.

Optical fiber is used to isolate the medium voltage power supply and all low-voltage systems, and the signals isolated by CT are isolated

 through the optical fiber to achieve maximum isolation.
