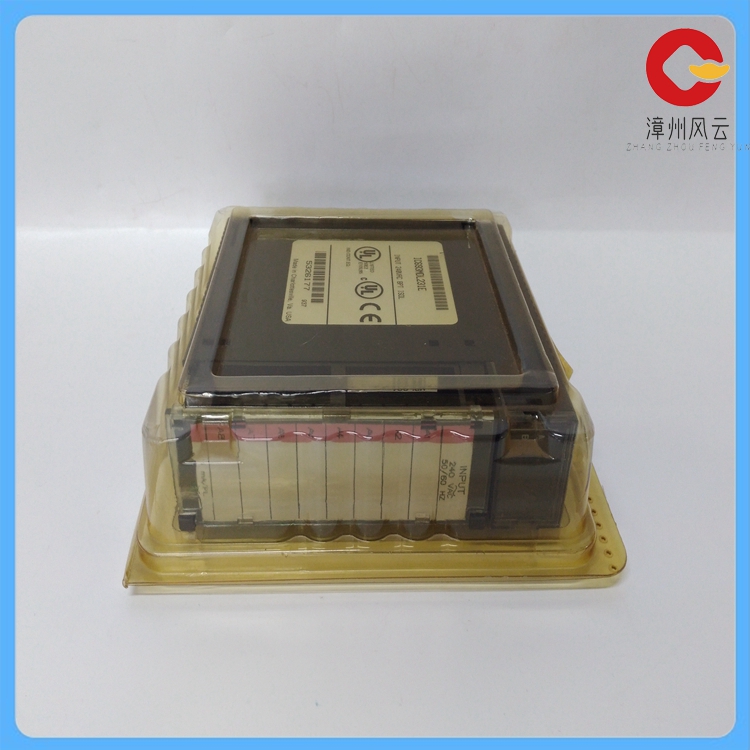

IC693MDL645是一个90-30系列的正/负逻辑输入模块。它主要用于连接输入设备，如按钮、限位开关、接近开关、辅助触点和其他类似设备。
在功能特性上，该模块配有一个输入组，并有一个公共端子。其可以接受的外部电压信号范围为0-30 VDC，标称电压为24VDC。在额定电压下，输入电流的要求为7mA。此外，模块的导通状态电压额定值为11.5 - 30 VDC，关断状态电压为0-5VDC。导通状态电流最小为3.2mA，而关断状态电流为1.1mA。无论是开启还是关闭状态，模块的开启响应时间均为7ms。
在安装和配置方面，IC693MDL645模块安装在90-30 PLC系统的5槽或10槽底板的可用槽中。它从背板吸取电流，80mA（所有输入开启）来自背板上的5伏总线，而125mA则来自隔离的24伏背板总线或用户提供的电源。
IC693MDL645模块还具备冗余部件之间的无扰动切换技术。通过高速的冗余通讯通道实现运行状态互检和控制状态的同步，以确保系统的稳定运行。当工作部件出现故障时，备用部件可以快速地无扰动地接替工作部件的所有控制任务。
The IC693MDL645 is a 90-30 series positive/negative logic input module. It is mainly used to connect input devices such as buttons, limit switches, proximity switches, auxiliary contacts and other similar devices.
In terms of functional features, the module is equipped with an input group and has a common terminal. The acceptable external voltage signal range is 0-30 VDC and the nominal voltage is 24VDC. At the rated voltage, the input current requirement is 7mA. In addition, the module has an on-state voltage rating of 11.5-30 VDC and a off state voltage of 0-5VDC. The minimum on-state current is 3.2mA, while the on-state current is 1.1mA. Regardless of whether the module is on or off, the response time of the module is 7ms.
In terms of installation and configuration, the IC693MDL645 module is installed in the available slots of the 5-slot or 10-slot baseplate of the 90-30 PLC system. It draws current from the backplane, 80mA (with all inputs turned on) from a 5-volt bus on the backplane, and 125mA from an isolated 24-volt backplane bus or a user-supplied power supply.
The IC693MDL645 module also features no-disturbance switching technology between redundant components. The mutual check of running state and synchronization of control state are realized through high speed redundant communication channel to ensure the stable running of the system. When the working part fails, the spare part can quickly take over all the control tasks of the working part without disturbance.
