DO880-1是一款数字量输出模块
其相关参数如下：
电压：24V。
电流：最大输出电流为0.5A每个通道。
输出保护：具有电流限制和过热保护。
通道数量：16通道。
重量：2KG。
DO880-1还有以下特性和优点：
一组隔离的16个24V直流电流源输出通道，适用于单一或冗余应用。
每个输出通道都包含限流和过温保护的高端驱动器、EMC保护组件、感性负载抑制、输出状态指示LED以及到Modulebus的隔离栅。
回路监控，通过可配置的限值监控短路和开路负载。
无需输出脉冲即可诊断输出开关。
根据IEC 61508通过SIL3认证，根据EN 954-1获得4类认证。

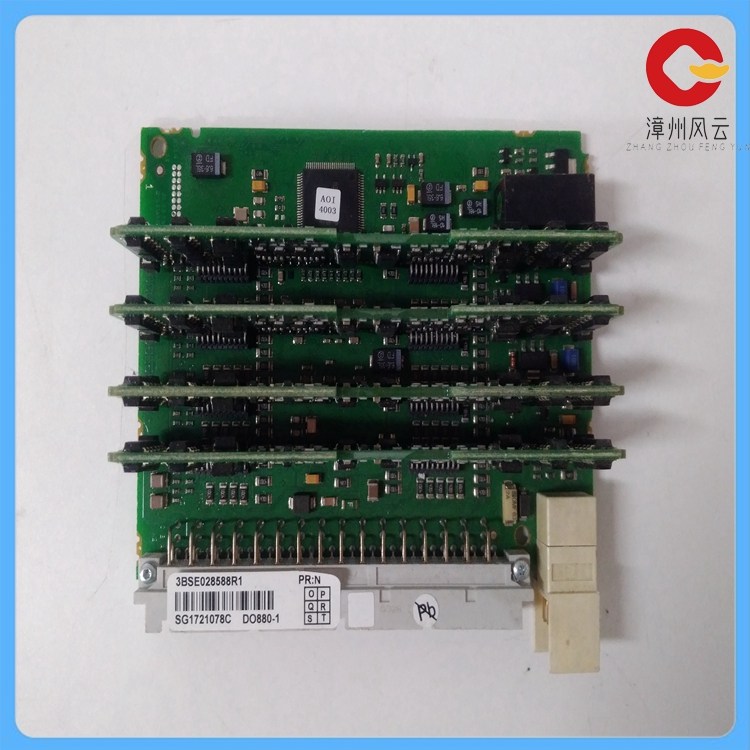

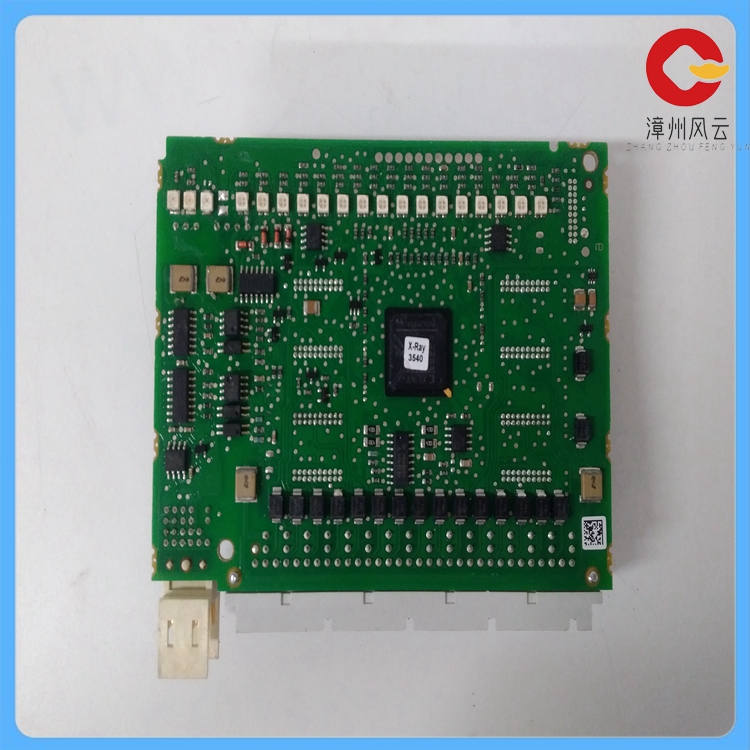

The DO880-1 is a digital output module
The relevant parameters are as follows:
Voltage: 24V.
Current: Maximum output current is 0.5A per channel.
Output protection: with current limitation and overheat protection.
Number of channels: 16 channels.
Weight: 2KG.
DO880-1 also has the following features and benefits:
A set of 16 isolated 24V DC current source output channels for single or redundant applications.
Each output channel contains high-end drivers for current limiting and overtemperature protection, EMC protection
components, inductive load suppression, output status indicator leds, and isolation grates to the Modulebus.
Loop monitoring, monitoring short and open loads with configurable limits.
Output switches can be diagnosed without output pulses.
SIL3 certification according to IEC 61508 and Category 4 certification according to EN 954-1.
