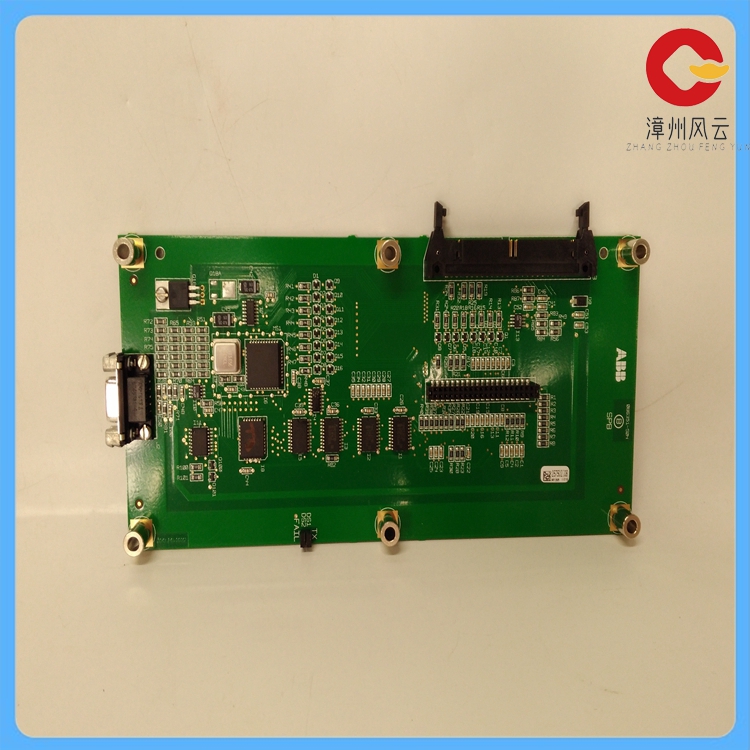

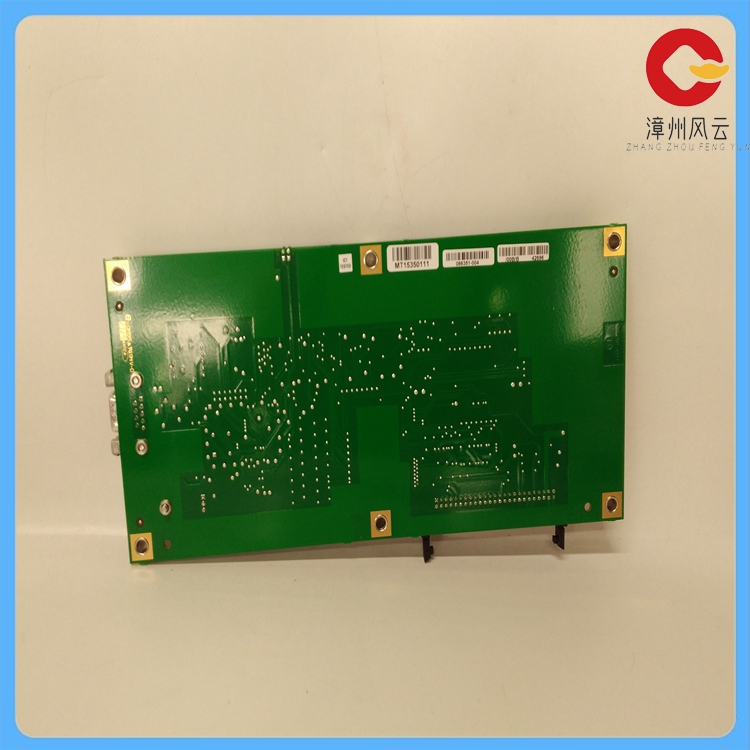

086406-002 模拟量模块

086406-002是一种模拟量模块，常用于工业自动化控制系统。

以下是关于086406-002模块的一些相关参数和特性：

型号：086406-002。

控制原理：

该模块具有内部保护，包括在线UPS功能，能够避免输入的浪涌、过冲、波动和断电，从而降低单点故障率。

输入与输出特性：

该模块支持全范围输入，包括AC 100~240V和DC (12V/24V)并列输入。

输出方面，具有电池可扩展热拔功能，并支持镍氢电池（可选）。

规格与尺寸：

AC输入电压范围为115~230V，输入频率范围为47~63Hz。

尺寸方面，宽度为150mm，深度为140mm，高度为86mm。

电气性能：

AC效率≥75%，DC效率≥70%。

低纹波，低杂讯，具有短路保护、过载、过压保护功能。

工作环境：

工作温度范围为0℃~50℃，存储温度范围为-40℃~65℃。

应用与用途：

该模块通常用于电厂、矿场、控制器和处理器等领域。

086406-002 is an analog module commonly used in industrial automation control systems.

Here are some of the parameters and features of the 086406-002 module:

Model: 086406-002.

Control principle:

The module has internal protection, including an online UPS function, to avoid input surges, overshoot, fluctuations

and power outages, thereby reducing the single point of failure rate.

Input and output characteristics:

The module supports a full range of inputs, including AC 100 to 240V and DC (12V/24V) parallel inputs.

In terms of output, it has the battery expandable hot pull function and supports nickel-metal hydride batteries (optional).

Specifications and Dimensions:

The AC input voltage ranges from 115 to 230V, and the input frequency ranges from 47 to 63Hz.

In terms of dimensions, the width is 150mm, the depth is 140mm, and the height is 86mm.

Electrical performance:

AC efficiency ≥75%, DC efficiency ≥70%.

Low ripple, low noise, with short circuit protection, overload, overvoltage protection.

Working environment:

The operating temperature ranges from 0 ° C to 50 ° C and the storage temperature ranges from -40 ° C to 65 ° C.

Application and use:

The module is commonly used in power plants, mines, controllers and processors.
