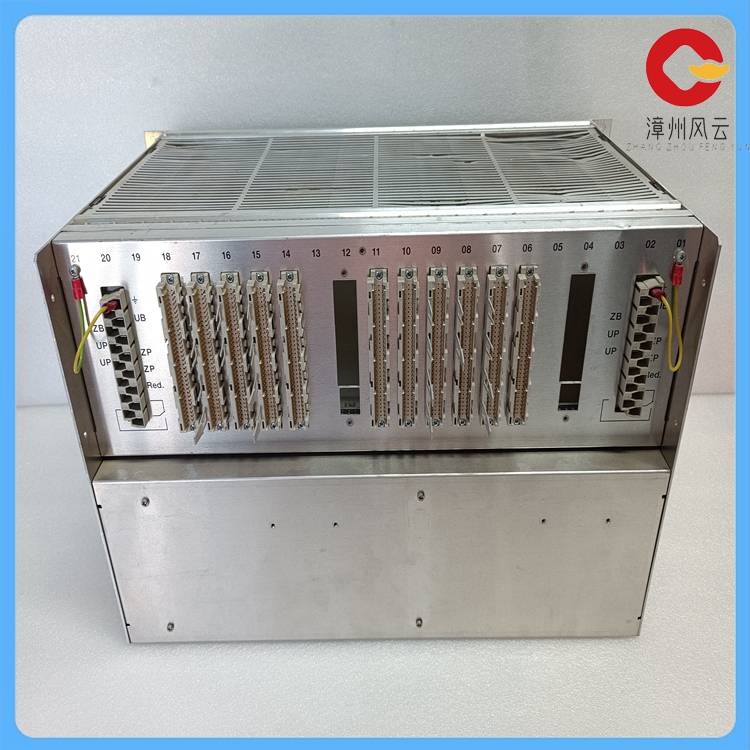

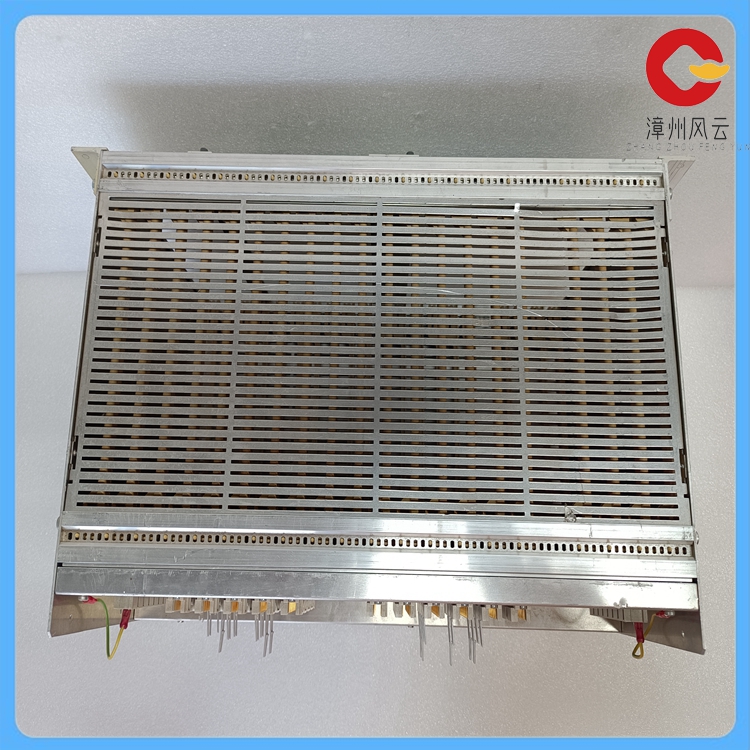

REG216 数字发电机保护模块

REG216是一款数字发电机保护模块

以下是关于REG216的一些相关参数和特性：

功能与应用：

REG216具有降低空闲电流和自检功能，适用于各种电力系统应用场景。

提供了多种直流输出型号，包括32V、48V和70V，可以满足不同设备的电源需求。

还具有额外的5VDC、500mA稳压逻辑电源，为其他设备提供稳定的电源供应。

REG216的动态特性使其具有优异的长期稳定性和快速动作能力，适用于发电机和变压器的保护。

物理特性：

REG216的直流输入范围为36至312V，输出为24V dc，150W。

辅助直流电源单元具有短路和过载保护功能。

通信与接口：

REG216支持串行通信，配有用于设置和编程的串行电缆。

还提供了用于数据监测和控制的接口，方便与其他设备进行连接和通信。

保护特性：REG216具有全面的保护功能，包括差动保护、过流保护、欠压保护等。采用了矢量积

原理的差动保护，具有穿越性故障及饱和时的高度稳定性。

The REG216 is a digital generator protection module

Here are some of the relevant parameters and features of REG216:

Functions and Applications:

The REG216 features idle current reduction and self-check for a variety of power system applications.

A variety of DC output models, including 32V, 48V and 70V, are available to meet the power needs of different devices.

There is also an additional 5VDC, 500mA regulated logic power supply to provide a stable power supply for other devices.

The dynamic nature of the REG216 gives it excellent long-term stability and fast action, suitable for the protection of generators and transformers.

Physical characteristics:

The REG216 has a dc input range of 36 to 312V and an output of 24V dc and 150W.

The auxiliary DC power supply unit has short circuit and overload protection.

Communication and interface:

The REG216 supports serial communication with a serial cable for setup and programming.

Interfaces for data monitoring and control are also provided to facilitate connection and communication with other devices.

Protection features: The REG216 has comprehensive protection functions, including differential protection, overcurrent protection,

undervoltage protection, etc. Differential protection based on vector product principle is adopted, which has high stability in

crossing fault and saturation.
