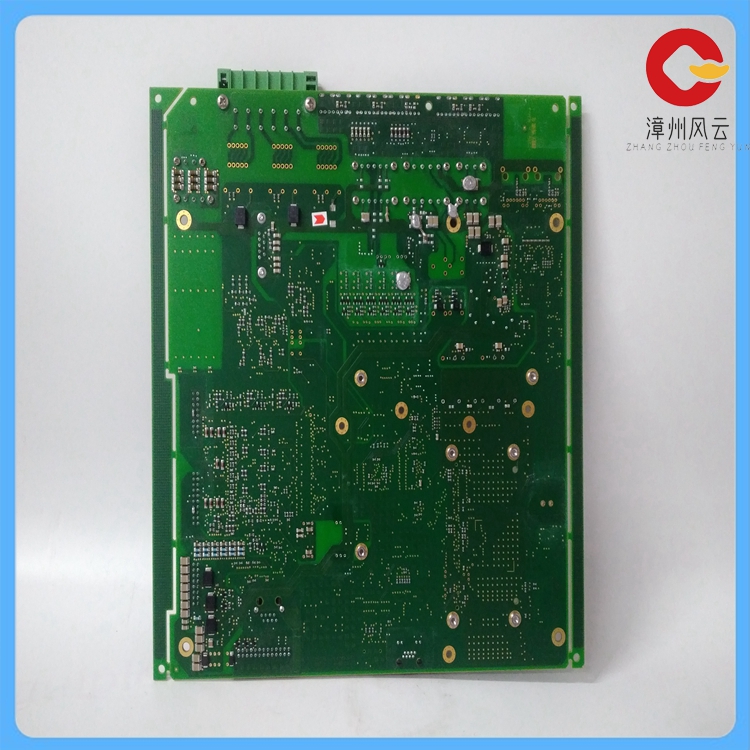

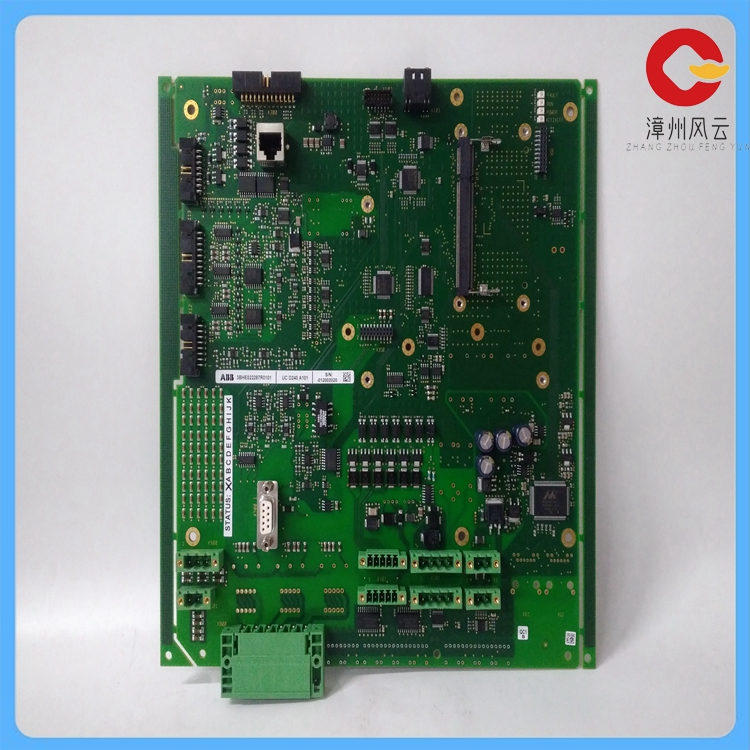

UCD240A101 励磁系统模块

UCD240A101是一款励磁系统模块。

以下是关于UCD240A101的详细参数和特性：

型号：UCD240A101

物理规格：

产品净深/长度：247毫米

产品净高：30毫米

产品净重：0.92公斤

产品净宽：270毫米

用途与功能：

UCD240A101是一种静态励磁系统

励磁功率取自静止交流电压源，经静止换流器整流后再通过滑环和电刷输入到发电机转子励磁绕组的励磁方式

适用于工业自动化和控制系统，特别是与发电机相关的应用

其他特性：

配备SPEED7新一代处理器，配备48Mbit/s的SLICE-BUS高速背板总线

标配以太网PG/OP接口，支持普通网线进行组态编程以及与上位机或HMI通讯

提供高性能PROFINET控制器接口，允许连接多达128个设备

支持VIPA的SPEED7 Studio或WinPLC7编程，同时支持SIMATIC Manager或TIA Portal

The UCD240A101 is an excitation system module.

The following are the detailed parameters and features of the UCD240A101:

Model: UCD240A101

Physical specifications:

Net depth/length: 247mm

Product height: 30 mm

Net weight: 0.92 kg

Product width: 270mm

Use and function:

The UCD240A101 is a static excitation system

The excitation power is obtained from the static AC voltage source, rectified by the static converter, and then input

 to the generator rotor excitation winding through the slip ring and brush

Suitable for industrial automation and control systems, especially those related to generators

Other features:

Equipped with the SPEED7 next-generation processor, it is equipped with the 48Mbit/s SLICE-BUS high-speed backplane bus

Standard Ethernet PG/OP interface, support ordinary network cable for configuration programming and communication with the host computer or HMI

Provides a high-performance PROFINET controller interface that allows up to 128 devices to be connected

Support VIPA's SPEED7 Studio or WinPLC7 programming, as well as SIMATIC Manager or TIA Portal
