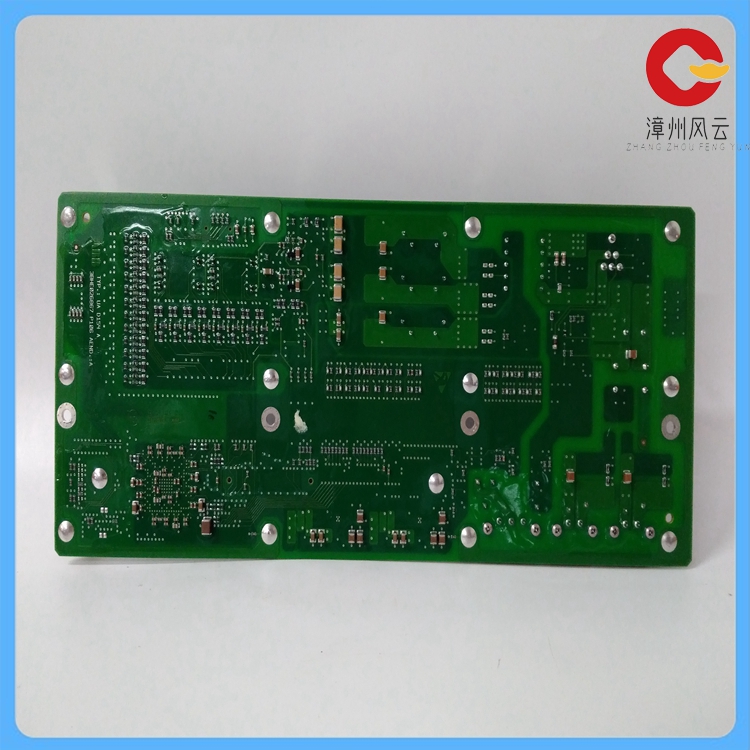

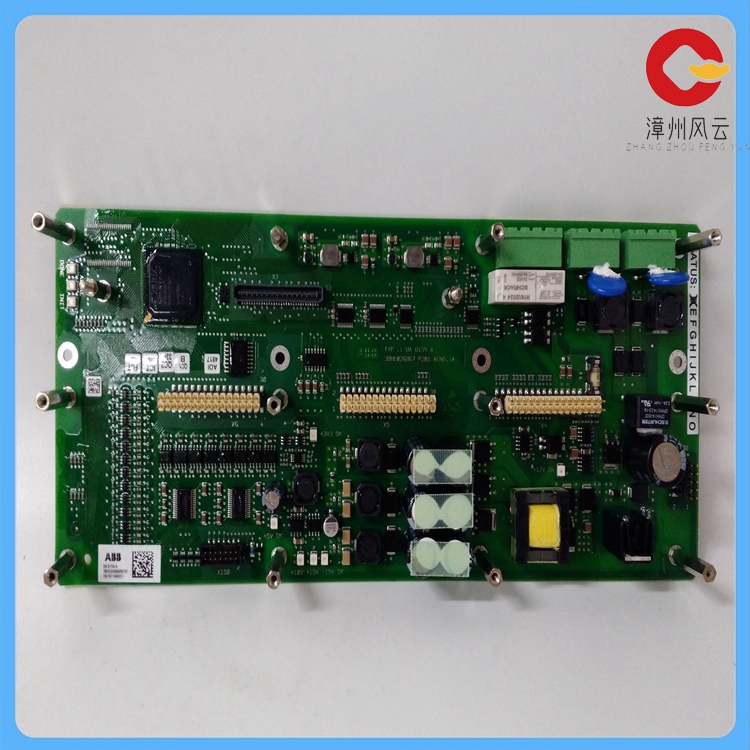

UAD154A 数字式频率保护继电器

UAD154A是一款的数字式频率保护继电器。

以下是关于UAD154A的相关参数：

型号：UAD154A

类型：数字式频率保护继电器或模拟量扩展模块

功能与应用：用于监测电力系统中的频率变化情况，并在频率异常时触发保护措施，以保护电力设备免受频率异常影响

作为模拟量扩展模块，可以扩展控制系统的模拟量输入输出功能

输出电压：24VDC

输出功率：360W

输入电压范围：10~30VDC

产品尺寸：96mm x 48mm x 16mm

产品重量：约1.2kg

最大输出电流：每个通道最大5mA

工作温度范围：-25~70℃

输入类型：常开/常闭触点

控制原理：采用模块化设计，操作方便，丰富系统功能，可内置EMI滤波器，强化电磁兼容设计

控制保护：及时可靠，系统稳定性高

输出频率范围：0.50~650.0Hz，分辨率达到0.01Hz

UAD154A is a digital frequency protection relay.

The following are the relevant parameters of UAD154A:

Model: UAD154A

Type: Digital frequency protection relay or analog expansion module

Functions and applications: Used to monitor the frequency change in the power system, and trigger protection

measures when the frequency is abnormal to protect the power equipment from the frequency anomaly

As an analog expansion module, it can expand the analog input and output function of the control system

Output voltage: 24VDC

Output power: 360W

Input voltage range: 10~30VDC

Product size: 96mm x 48mm x 16mm

Product weight: about 1.2kg

Maximum output current: Maximum 5mA per channel

Operating temperature range: -25~70℃

Input type: Normally open/normally closed contact

Control principle: Modular design, easy operation, rich system functions, built-in EMI filter, strengthen electromagnetic compatibility design

Control protection: timely and reliable, high system stability

Output frequency range: 0.50~650.0Hz, resolution of 0.01Hz
