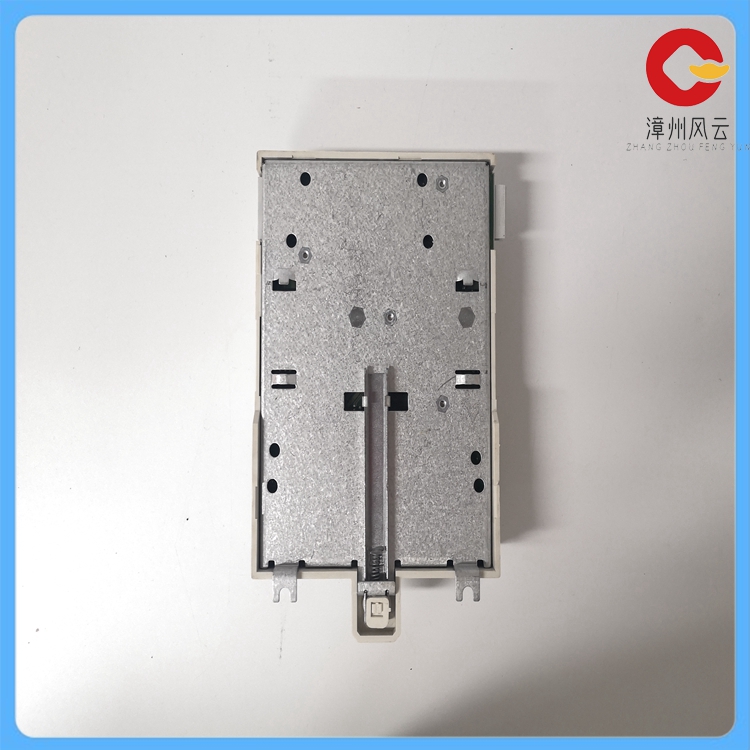

TU847 3BSE022462R1 传感器探头

TU847 3BSE022462R1是一个传感器探头

输入：涡轮传感器PR6422/...～PR6426/...。

输出：直流电压上叠加与轴振动成正比的交流电压信号。输出电压线性范围：-4...-20V（供电电压为-24V）。输出电压：-12V（两端对称的测量范围）。

保护特性：具有开路和短路保护，以及反向保护。

内阻：100k。

响应时间：15。

精度：线性误差根据不同的传感器有所不同，例如连接传感器PR6422的线性误差为≤1.5%，连接传感器PR6423的线性误差为≤1.0%等。

温漂：零点200mV/100K；灵敏度<2%/100K。

供电电压的误差：<0.2%/V。

应用领域：现代化工业领域。

The TU847 3BSE022462R1 is a sensor probe

Input: Turbine Sensor PR6422/... ~ PR6426/... .

Output: The AC voltage signal superimposed on the DC voltage is proportional to the shaft vibration. Output voltage

linear range: -4... -20V (the supply voltage is -24V). Output voltage: -12V (symmetrical measurement range at both ends).

Protection features: With open and short circuit protection, as well as reverse protection.

Internal resistance: 100k.

Response time: 15.

Accuracy: The linear error varies according to different sensors, for example, the linear error of the connected sensor PR6422

 is less than 1.5%, the linear error of the connected sensor PR6423 is less than 1.0%, etc.

Temperature drift: zero 200mV/100K; Sensitivity <2%/100K.

Error of supply voltage: <0.2%/V.

Application field: modern industrial field.
