REF615C 电机保护继电器模块 自动诊断程序

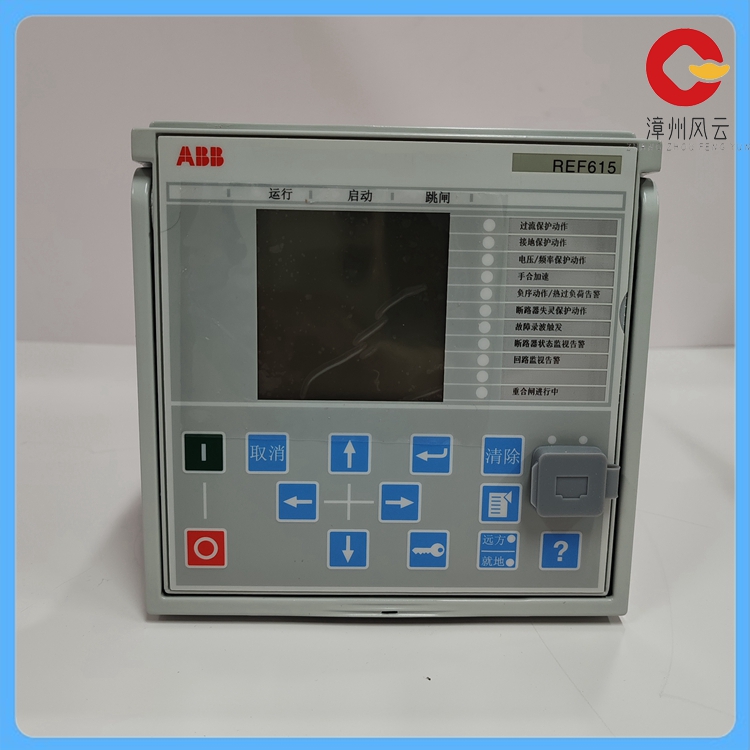

REF615C 是一种电机保护继电器模块。

以下是关于REF615C的相关参数和描述：

功能和用途：

REF615C是一个电机保护继电器，用于监测和保护电机。它能够检测电机的运行状态，并在电机出现故障或异常情况时切断电源，从而保护电机免受进一步损坏。

该模块支持不同类型的振动信号处理，并提供加速度、速度或位移的测量。

技术参数：

测量参数：加速度、速度或位移。

增益设置：x1和x10可选。

滤波器：内置高、低通滤波器，频率范围可选（如3Hz-1kHz或10Hz-1kHz）。

输出：计算值被转换为4..20mA标准，允许REF615C系统直接连接到PLC、DCS、SCADA等高级系统。

通讯接口：某些型号可能配备了与模块PSS-300的数字通信功能。

配置和诊断：REF615C配备了自动诊断程序，能够检测测量链的故障（如开路/短路）并检查电流回路的状态。

The REF615C is a motor protection relay module.

The following are the parameters and descriptions of the REF615C:

Functions and Uses:

The REF615C is a motor protection relay designed to monitor and protect motors. It is able to detect the operating state of the motor and cut

off the power in case of a motor failure or abnormal conditions, thereby protecting the motor from further damage.

The module supports different types of vibration signal processing and provides measurement of acceleration, speed or displacement.

Technical parameters:

Measurement parameters: acceleration, velocity or displacement.

Gain setting: x1 and x10 are optional.

Filter: Built-in high and low pass filters with optional frequency ranges (such as 3Hz-1kHz or 10Hz-1kHz).

Output: The calculated value is converted to 4... The 20mA standard allows REF615C systems to connect directly to advanced systems such as PLCS, DCS, SCADA, etc.

Communication interface: Some models may be equipped with a digital communication function with the module PSS-300.

Configuration and diagnosis: The REF615C is equipped with an automatic diagnostic program capable of detecting faults in the measurement chain (e.g. open/short

 circuit) and checking the status of the current loop.
