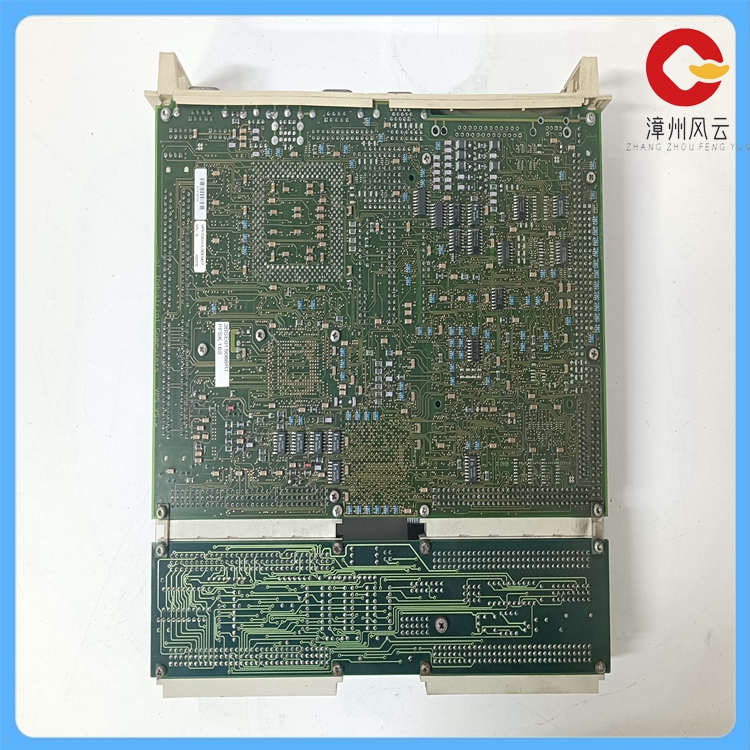

PFSK162 信号调节板

PFSK162 3BSE015088R1是一款信号调节板。

以下是有关该信号调节板的一些主要参数和特性：

技术指标：

通道数：2-16。

恒流供电电流：4mA。

恒流供电电压：24V DC。

增益：可根据用户要求在1-100之间定制，默认值为1。

高频上限：可根据用户要求在1-100kHz之间定制，默认值为30kHz。

低频下限：0.08Hz。

供电电压：DC 24V（配套电源适配器AC220V-24VDC）。

工作温度：-10°C至+40°C。

工作湿度：≤85%。

应用领域：

PFSK162 3BSE015088R1信号调节板广泛应用于机械、电气、电信、电力、石油、化工、钢铁、污水处理、

楼宇建筑等领域的数据采集、信号传输转换、PLC、DCS等工业测控系统。

The PFSK162 3BSE015088R1 is a signal regulator.

Here are some of the main parameters and characteristics of the signal regulator:

Technical indicators:

Number of channels: 2-16.

Constant current supply current: 4mA.

Constant current supply voltage: 24V DC.

Gain: Can be customized from 1 to 100 according to user requirements, the default value is 1.

High frequency upper limit: can be customized according to user requirements between 1-100kHz, the default value is 30kHz.

Lower lower frequency: 0.08Hz.

Power supply voltage: DC 24V (matching power adapter AC220V-24VDC).

Operating temperature: -10°C to +40°C.

Working humidity: ≤85%.

Application field:

PFSK162 3BSE015088R1 signal control board is widely used in machinery, electrical, telecommunications, electric power, petroleum, chemical,

steel, sewage treatment, building construction and other fields of data acquisition, signal transmission and conversion, PLC, DCS and other

 industrial measurement and control systems.
