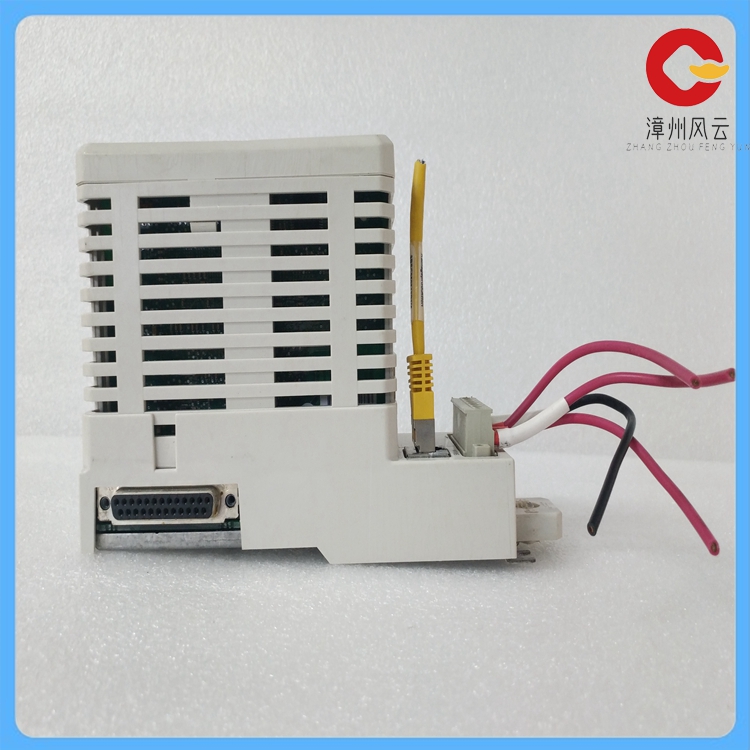

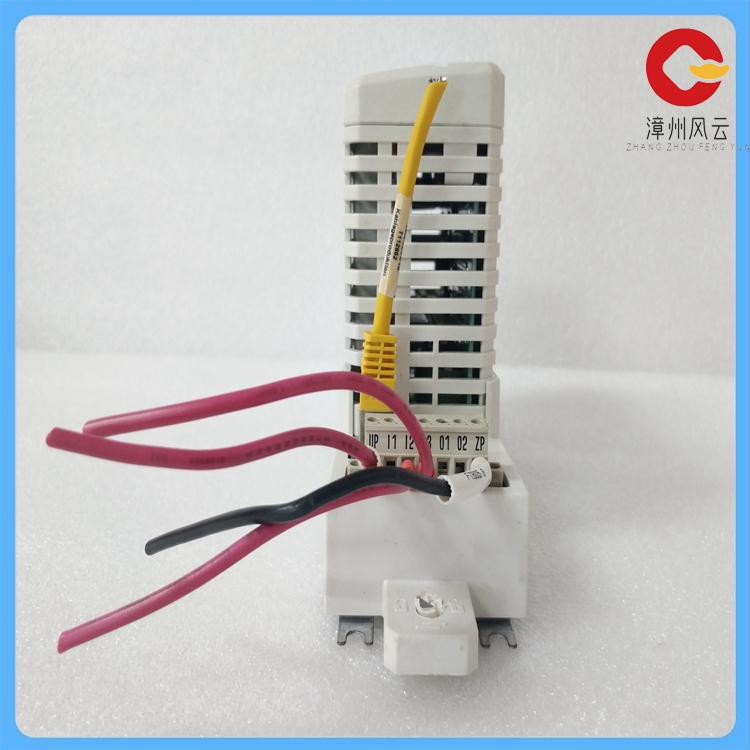

SM811K01 3BSE018173R1 安全CPU模块 电压监控功能

SM811K01 3BSE018173R1是一款安全CPU模块

以下是与该模块相关的一些参数和特性：

主要功能：

在非SIL和SIL1-2运行期间为控制器提供智能监督。

与PM865形成a1或o2不同的SIL3应用结构。

具有一个专用的同步链接，用于同步主动和冗余SM以进行热插入和在线升级。

性能：使用MPC862P微处理器，运行速度为96 Mhz。

配备32 MB RAM。

电压监控功能，支持热交换。

物理规格：估计的运输尺寸为5.0" x 6.0" x 7.0"（12.7 cm x 15.2 cm x 17.8 cm）。重量为2 lbs 4.0 oz（1.0 kg）。

环境参数：

操作温度范围为+5至+55 C（+41至+131 F）。

存储温度范围为-40至+70 C (-40至+158 F)。

相对湿度范围为5%至95%，非冷凝。

振动和噪音等级也满足特定标准。

电源：

电源供应器为24伏直流（19.2伏-30伏直流）。

功率消耗最大值在+24 V时为160/250瓦。

认证与标准：通过SIL3认证。

SM811K01 3BSE018173R1 is a secure CPU module

Here are some of the parameters and features associated with this module:

Main functions:

Provides intelligent supervision of the controller during non-SIL and SIL1-2 operation.

The SIL3 application structure is different from that of the PM865 for a1 or o2.

Has a dedicated sync link for synchronizing active and redundant SM for hot insertion and online upgrades.

Performance: Uses the MPC862P microprocessor and runs at 96 Mhz.

Equipped with 32 MB RAM.

Voltage monitoring function, support heat exchange.

Physical specifications: Estimated shipping dimensions are 5.0" x 6.0" x 7.0" (12.7 cm x 15.2 cm x 17.8 cm).

It weighs 2 lbs 4.0 oz (1.0 kg).

Environmental parameters:

Operating temperature range is +5 to +55 C (+41 to +131 F).

The storage temperature range is -40 to +70 C (-40 to +158 F).

Relative humidity ranges from 5% to 95%, non-condensing.

Vibration and noise levels also meet specific criteria.

Power Supply:

The power supply is 24 volts DC (19.2 volts -30 volts DC).

The maximum power consumption is 160/250 watts at +24 V.

Certification and standards: SIL3 certification.
