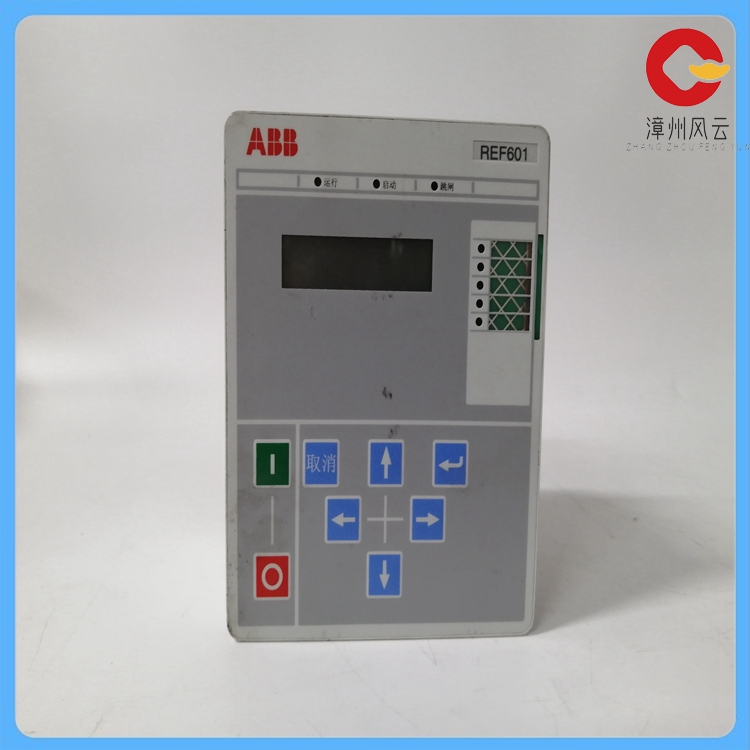

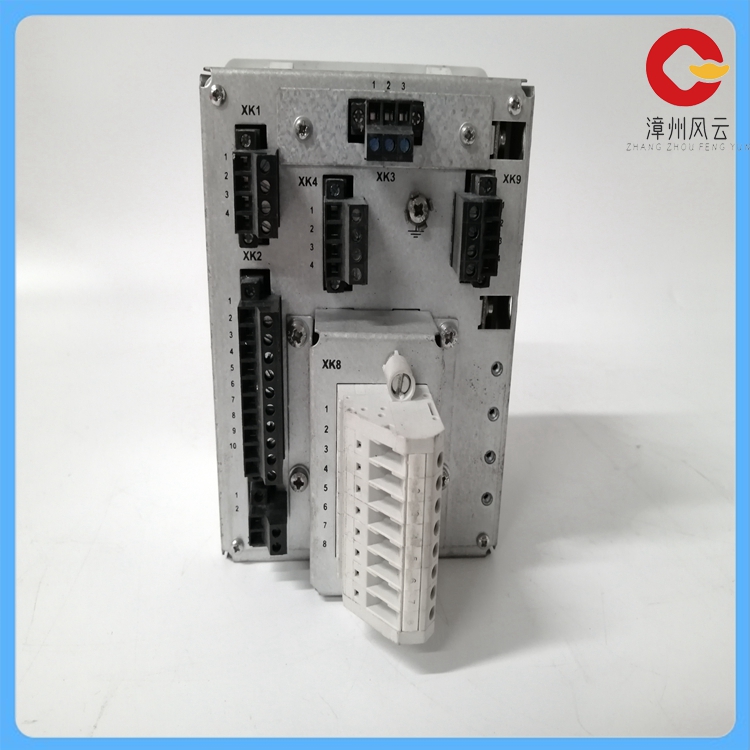

REF601是Relion® 产品系列的馈线保护和测控装置，属于605系列，具有以下关键参数和特性：
体积与使用方便性：REF601具有体积小巧、使用方便的特点。
电流测量：它用于相电流测量的标准，支持1A或5A的CT输入，并具备备用传感器输入以支持相电流测量。
接地电流测量：通过CBCT，REF601可以在内部或外部测量接地电流。
断路器控制与监控：REF601具备本地和远程控制断路器的功能，以及跳闸回路监控和继电器内部监控的能力。
事件记录与故障记录：REF601提供100条带日期和时间戳的事件记录，以及五种模拟故障记录。
通信接口：REF601支持MODBUS RTU或IEC 60870-5-103通信协议，用于设置和故障记录的非易失性存储器。
保护功能：REF601提供多种保护功能，包括三级过流保护、两级接地故障保护、热过载保护、负序过流、相位不连续保护等。
电源与工作环境：REF601具备通用辅助电源，并可在-20°C至+70°C的工作温度范围内运行。
可编程性：REF601具有可编程功能，允许用户自定义保护参数和逻辑，以适应不同的电力系统配置和需求。
触摸屏界面：某些REF601控制模块可能配备触摸屏界面，便于用户轻松配置和监测设备。
The REF601 is a feeder protection and measurement and control device in the Relion® product family, part of the 605 series, with the following key parameters and characteristics:
Size and ease of use: The REF601 is compact and easy to use.
Current measurement: It is the standard for phase current measurement, supports 1A or 5A CT inputs, and has backup sensor inputs to support phase current measurement.
Ground current measurement: With CBCT, the REF601 can measure ground current internally or externally.
Circuit breaker control and monitoring: The REF601 provides local and remote control of circuit breakers, as well as tripping loop monitoring and relay internal monitoring capabilities.
Event logs and fault logs: The REF601 provides 100 event logs with date and time stamps, as well as five simulated fault logs.
Communication interface: REF601 supports MODBUS RTU or IEC 60870-5-103 communication protocols for setting up and non-volatile memory for fault logging.
Protection features: The REF601 offers a variety of protection features, including three-stage overcurrent protection, two-stage ground fault protection, thermal overload protection, negative sequence overcurrent protection, phase discontinuity protection, and more.
Power and operating environment: The REF601 has a universal auxiliary power supply and can operate in the operating temperature range from -20°C to +70°C.
Programmability: The REF601 features programmable features that allow users to customize protection parameters and logic to suit different power system configurations and needs.
Touch screen interface: Some REF601 control modules may be equipped with a touch screen interface to allow users to easily configure and monitor the device.
