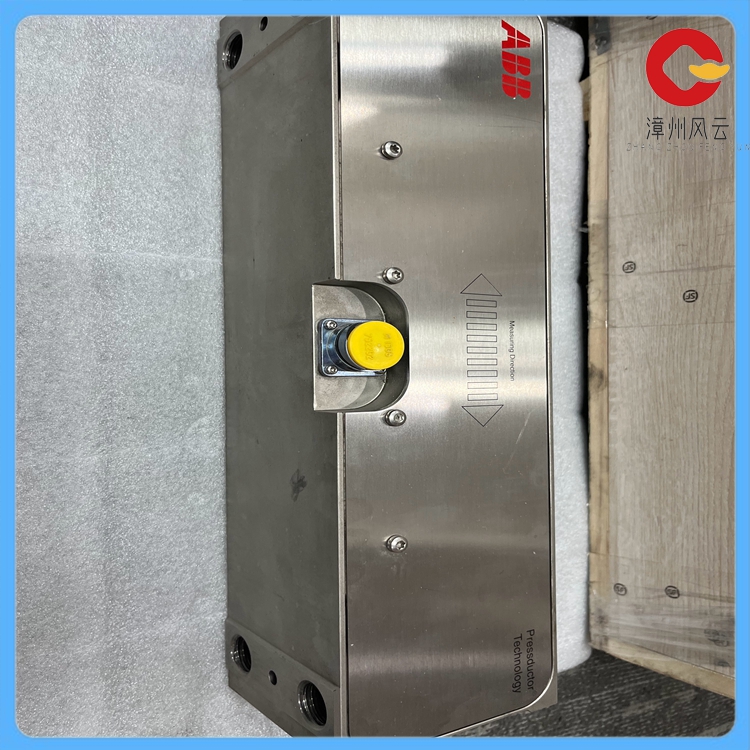

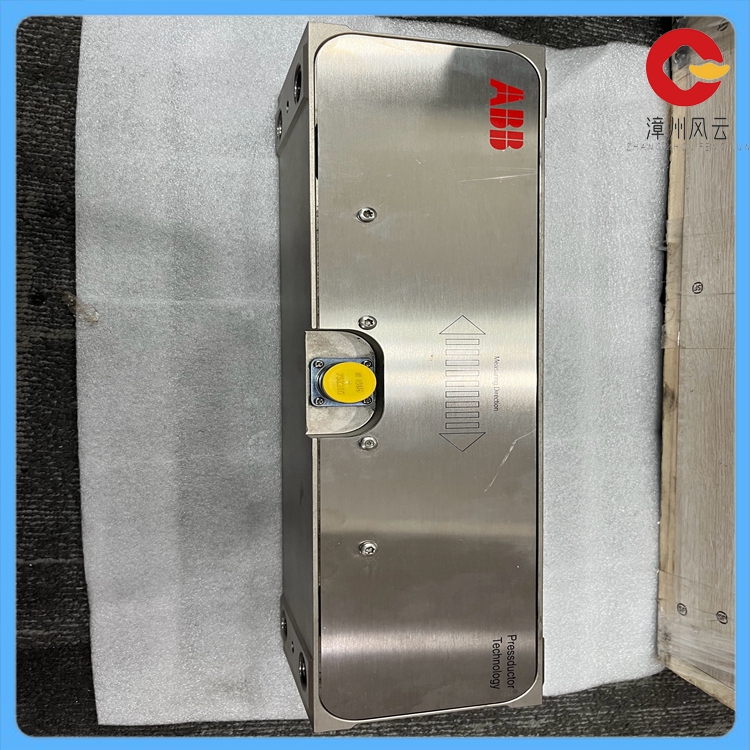

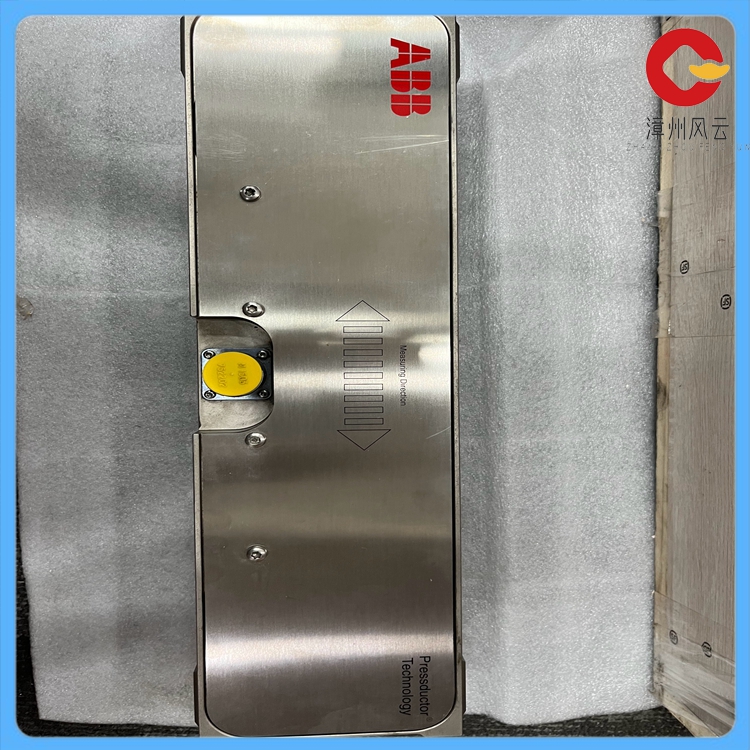

PFTL201C 10KN 3BSE007913R10 称重传感器

ABB PFTL201C 10KN 3BSEO07913R10的参数如下:

额定拉力: 10KN。

工作电压: DC24V。

工作电流:5A。

重量:约1.8kg。

尺寸: 长度约422mm，宽度约248mm，高度约82mm

最大行程速度: 30mm/s

最大加速度: 200mm/s2.

工作环境温度: -5~+50°C

工作环境湿度: <95%。

防护等级: IP67。

ABB PFTL201C 10KN 3BSEO07913R10的特点如下:

具有卓越的耐用性和高弹箭学数:ABB特的水平称重传感器，专门用于测景分力，提供刚度水平以及所有力方向上的过载公差，明显大于可以实现的目

标

实心不锈钢结构组合:具有灵敏度和准确性，具有卓越的耐用性和高弹箭常数。单位可容忍过载高达其标称容量的十倍: 并与电子设备相结合，即使在受到强烈的振动时也能正常工作

PFTL201C 10KN 3BSE007913R0010 ABB张力传感器

PFTL201C 10KN张力传感器,英文:tension pick-up,张力传感器是张力控

制过程中,用于测量卷材张力值大小的仪器。用于制药、应变片型是张力应变片和压缩应变片按照电桥方式连接在一起,当受到外压力时应变片的电阻值也随之改变,PFTL201C 10KN 改变值的多少将正比于所

受张力的大小;微位移型是通过外力施加负载,使板簧产生位移,然后通过差接变压器检测出张力,由于板簧的位移量极小,大约+200um,所以称作微位移型张力检测器。PFTL201C 10KN 另外，由外型结构上又分为:轴台式

穿轴式、悬臂式等

The parameters of ABB PFTL201C 10KN 3BSEO07913R10 are as follows:

Rated tension: 10KN.

Working voltage: DC24V.

Working current :5A.

Weight: About 1.8kg.

Size: Length about 422mm, width about 248mm, height about 82mm

Maximum stroke speed: 30mm/s

Maximum acceleration: 200mm/s2.

Working environment temperature: -5&#126; +50°C

Working humidity: <95%.

Protection level: IP67.

ABB PFTL201C 10KN 3BSEO07913R10 features are as follows:

Excellent durability and high rocket numbers :ABB's special horizontal load sensor, specifically designed to measure landscape force components, provides stiffness levels and overload tolerances in the direction of the force that are significantly greater than can be achieved

mark

Solid stainless steel construction combination: with sensitivity and accuracy, excellent durability and high bullet constant. The unit can tolerate overloads up to ten times its nominal capacity: and, combined with electronics, works even when subjected to strong vibrations

PFTL201C 10KN 3BSE007913R0010 ABB tension sensor

PFTL201C 10KN tension sensor, English: Tension pick-up, tension sensor is tension control

An instrument used to measure the tension value of a coil during fabrication. The strain gauge type is that the tension strain gauge and the compression strain gauge are connected together in accordance with the bridge mode, and the resistance value of the strain gauge also changes when the external pressure is applied, and the change value of PFTL201C 10KN will be proportional to the change value

The amount of tension received; Micro-displacement type is through the external force to apply the load, so that the spring displacement, and then through the differential transformer to detect the tension, because the displacement of the spring is very small, about +200um, so called micro-displacement tension detector. PFTL201C 10KN In addition, by the appearance of the structure is divided into: shaft table

Through shaft type, cantilever type, etc
