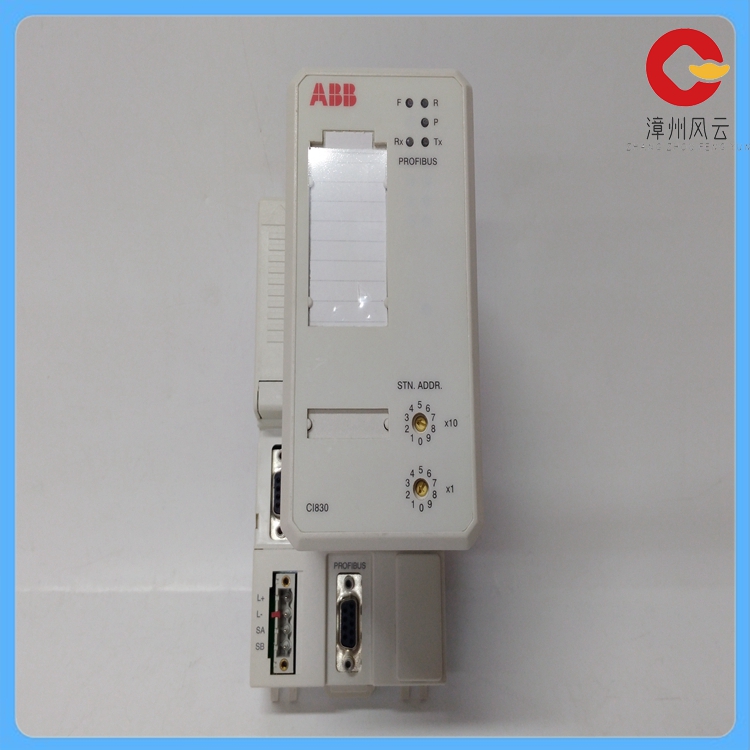

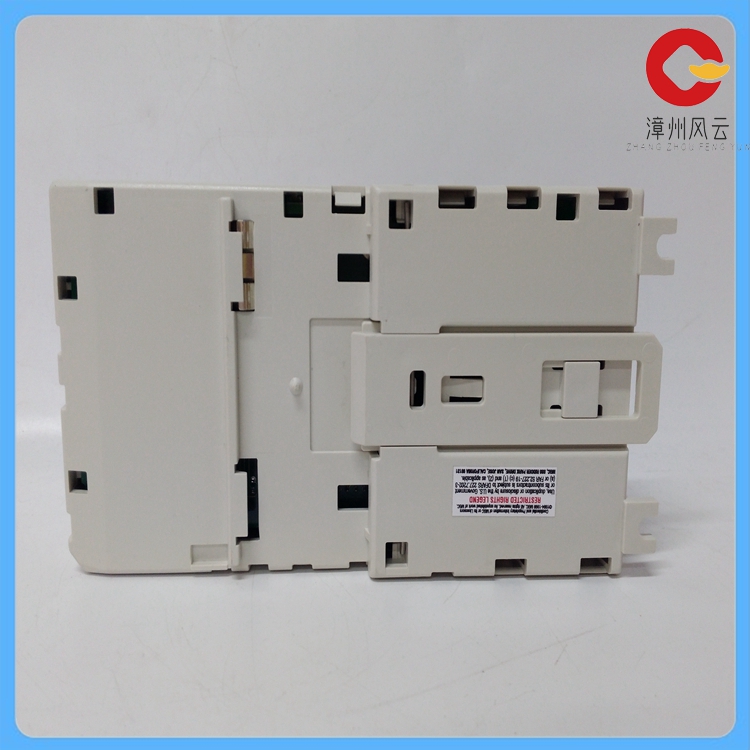

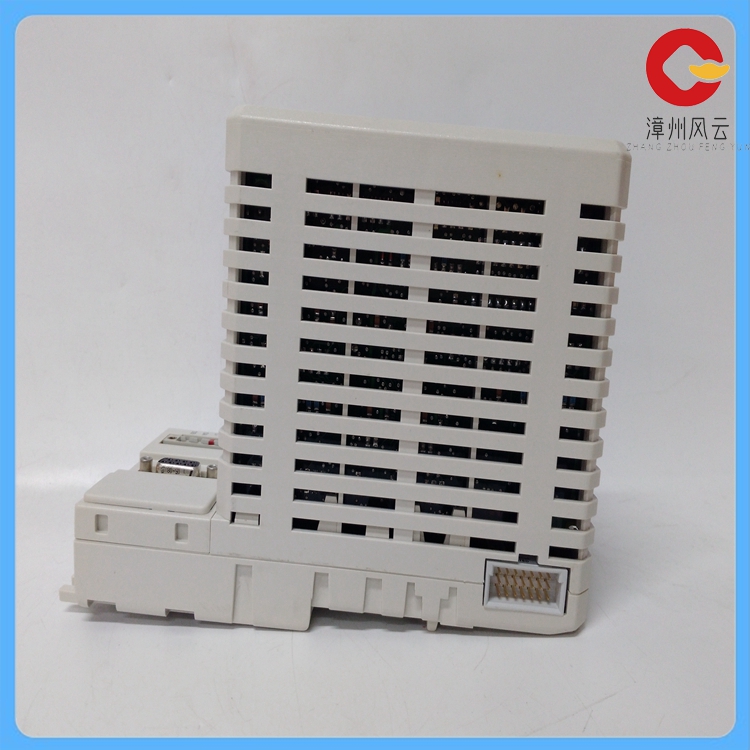

CI830 DDC控制系统模块

CI830 DDC控制系统模块

供电电源：380V±10% 50HZ。

标称容量：20KVA。

输出电流：

串联：2000A。

并联：4000A。

测量精度：0.5级。

空载电压：≥10V。

测量时间范围：0.001-99.999S，分辨率：1mS。

输出持续时间：≤30S。

输入电源：AC:220V-25A, 50Hz。

输出电流波形失真度：≤5%。

输出电流：AC:i000A.5V或500A.IOV。

使用环境：温度：-10~40°C，相对湿度：<80%。

体积：402X232X245mm。

重量：30Kg。

CI830 支持逻辑独立双Profibus DP总线，支持标准规范中的预定通信速率。

CI830 支持拨码开关手动设置其全部标准速率或者速率自适应。

具有1~2路Profibus DP电口及1~2路155M光纤接口灵活选择，支持冗余双网的光纤环网拓扑。

具有20km以上光纤距离，155Mb/s高速光接口支持突发数据的长距离可靠传输。

具有6个双色LED状态指示灯，光纤链路以及电源故障继电器输出告警。

CI830 DDC control system module

Power supply: 380V±10% 50HZ.

Nominal capacity: 20KVA.

Output current:

Series: 2000A.

Parallel connection: 4000A.

Measurement accuracy: 0.5 level.

No-load voltage: ≥10V.

Measurement time range: 0.001-99.999S, resolution: 1mS.

Output duration: ≤30S.

Input power supply: AC: 220-25A, 50Hz.

Output current waveform distortion: ≤5%.

Output current: AC:i000A.5V or 500A.IOV.

Operating environment: Temperature: -10~40°C, relative humidity: <80%.

Volume: 402X232X245mm.

Weight: 30Kg.

The CI830 supports logically independent dual Profibus DP buses and supports the predetermined communication rates in the standard specification.

The CI830 supports manual setting of all standard or rate adaptive DIP switches.

With 1 to 2 Profibus DP electrical ports and 1 to 2 155M optical fiber interfaces flexible choice, support redundant dual network fiber ring network topology.

It has a fiber optic distance of more than 20km and a high-speed optical interface of 155Mb/s to support the reliable transmission of burst data over long distances.

It has 6 two-color LED status indicators, fiber link and power failure relay output alarms.
