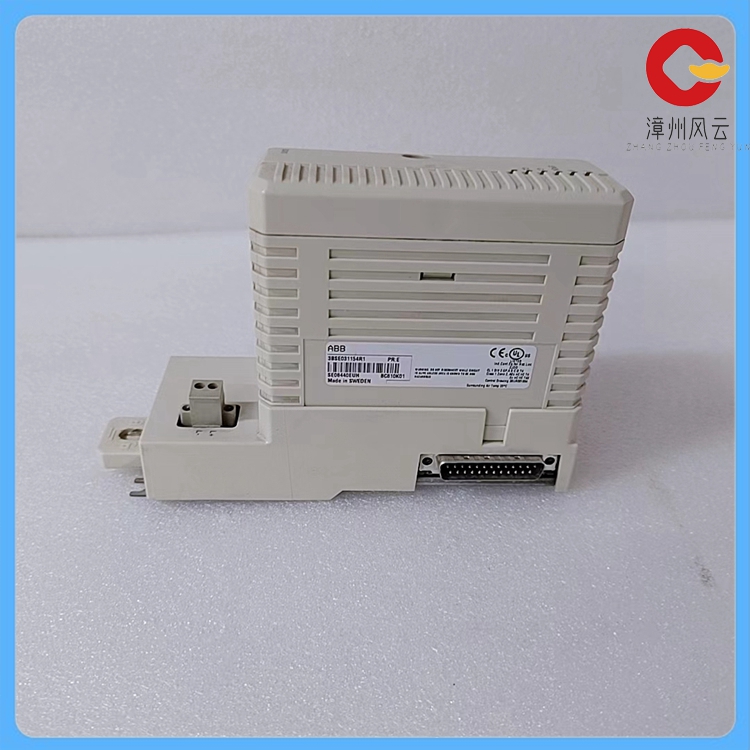

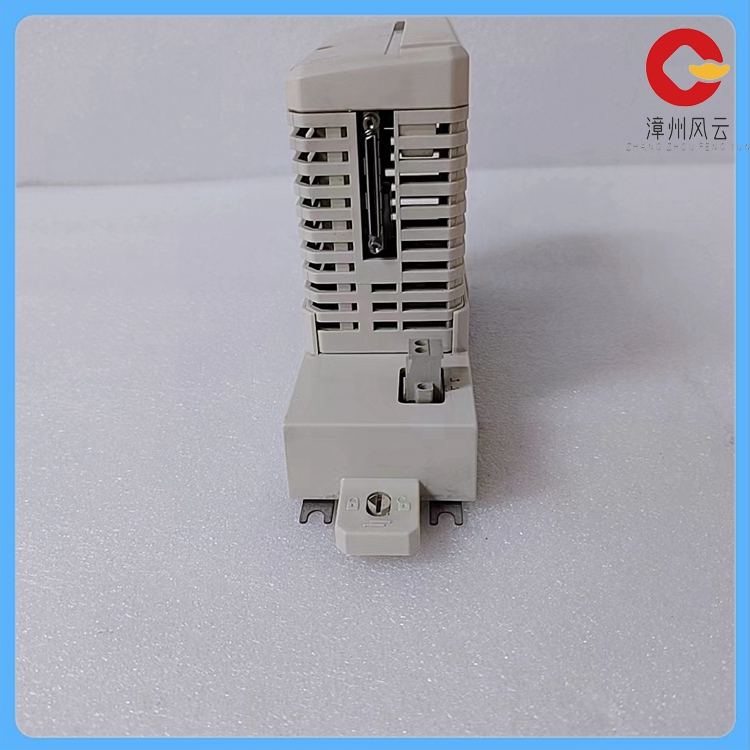

​BC810K01 总线互连模块

BC810K01是的一种总线互连模块，专为工业自动化系统设计，能够在各种设备和控制器之间建立高效的通信连接。

该模块用于在设备之间建立通信连接，并具有高度的可靠性和稳定性，能够在各种工业环境下正常工作。

应用领域：BC810K01广泛应用于各种工业自动化系统，包括生产线控制、工厂自动化、过程控制等。

结构与组成：BC810K01主要由底板(TP857)和电源/逻辑板两部分组成。底板是CEX-Bus和外部电源的连接器所在的位置，而电源和逻辑板则包括+3.3 V转换器、逻辑板、CEX-Bus互连驱动和互连电缆连接器。

通信与连接：BC810K01互连单元用于连接CEX总线设备，通过提供适当的电压和信号强度，确保在CEX总线上有效和可靠的通信。

该模块支持以太网通信，并可能包含其他通信接口，如RS485等。

功能特点：BC810K01具有易于安装和配置的特点，可以快速地集成到现有的系统中。

该模块可能支持热交换功能，可以在不影响系统运行的情况下更换或维护模块。

BC810K01 is a bus interconnect module designed for industrial automation systems to establish efficient communication connections between various devices and controllers.

The module is used to establish communication connections between devices, and has a high degree of reliability and stability, which can work properly in various industrial environments.

Applications: BC810K01 is widely used in various industrial automation systems, including production line control, factory automation, process control, etc.

Structure and composition: BC810K01 is mainly composed of two parts: the baseboard (TP857) and the power/logic board. The backboard is where the connectors for the CEX-Bus and

external power supply are located, while the power and logic board include the + 3.3V converter, the logic board, the CEX-Bus interconnect driver, and the interconnect cable connector.

Communication and connectivity: The BC810K01 Interconnect unit is used to connect CEX bus devices, ensuring efficient and reliable communication on the CEX bus by providing the

appropriate voltage and signal strength.

The module supports Ethernet communication and may include other communication interfaces such as RS485.

The BC810K01 is easy to install and configure and can be quickly integrated into existing systems.

The module may support a heat exchange function, and the module can be replaced or maintained without affecting the operation of the system.
